Description
TP Link VIGI C230 (2.8mm) 3MP Outdoor Full-Colour Dome Network Camera
- 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
- IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

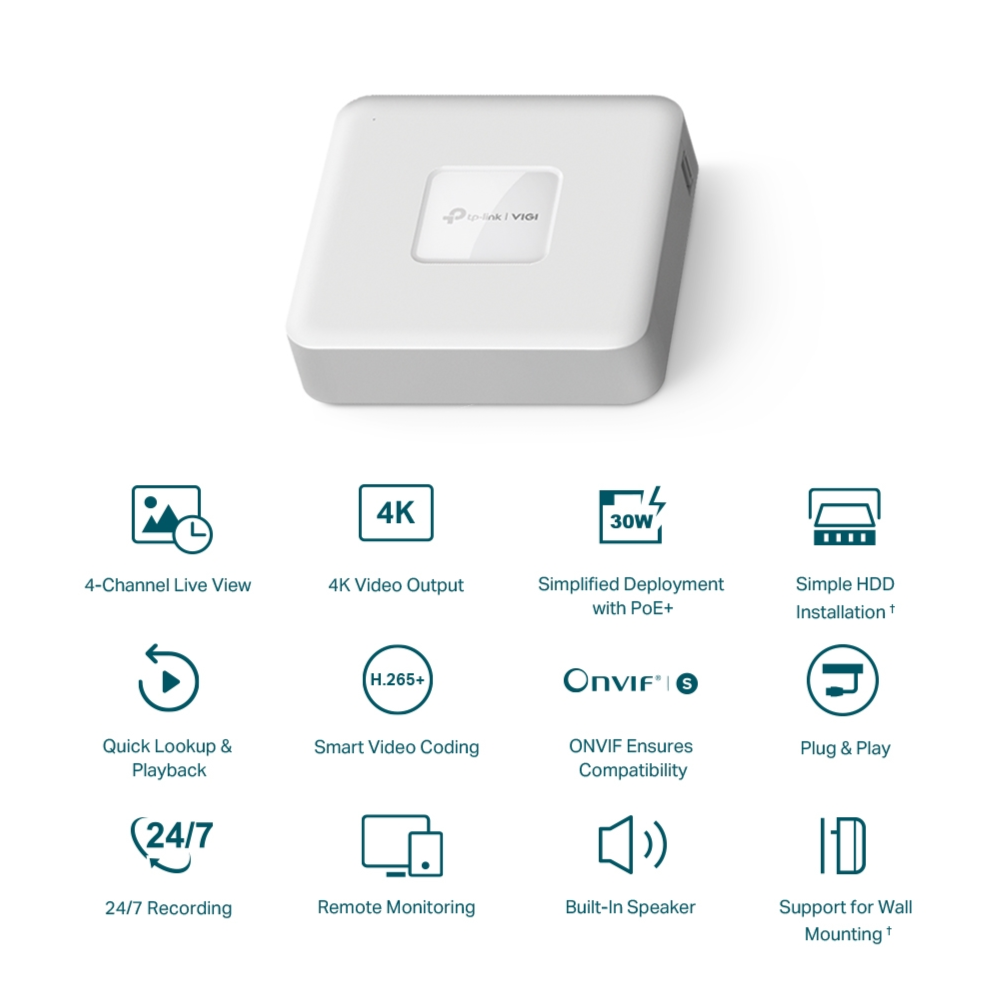

VIGI NVR1104H-4P
VIGI 4 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle‡.
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- Simple HDD Installation†: Install and remove the HDD manually with easy side access.
- 4-Channel Simultaneous Playback△ : Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Built-In Speaker: Enjoy real-time audio output without needing peripherals for greater convenience.
- Flexible Installation: Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk.
Specifications
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Lens | 2.8 mm/ 4 mm |
| Aperture | 2.8 mm: F1.6 4 mm: F1.6 |
| Lens Mount | M12 |
| Viewing Angle | 2.8mm: Horizontal FOV: 107.5°, Vertical FOV:57.2°, Diagonal FOV: 128.7° 4mm: Horizontal FOV: 89.1°, Vertical FOV:45.1°, Diagonal FOV: 106.9° |
| Day/Night Mechanism | IR Cut Filter |
| Minimum Illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
| Pan/Tilt Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
| Weatherproof Rating | IP67 |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| NETWORK | |
|---|---|
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| GENERAL | |
|---|---|
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Operating Temperature | -30–60 °C |
| Certifications | CE/BSMI/VCCI/ONVIF |
| Dimensions( H X W X D ) | 115 × 115 × 86 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
| Power Consumption | 12V DC: Max 4.7W PoE: Class 0 |
| Vandal Resistant | IK10 |
| ILLUMINATOR | |
|---|---|
| IR LED | Quantity: 1 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 1 Range: 30m |
| VIDEO/IMAGE | |
|---|---|
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions | Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
| Max. Resolution | 3MP (2304 × 1296) |
| Video Streaming | Main Stream Sub-Stream |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Video Bit Rate | 64 Kbps to 4 Mbps |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SMART FEATURE-SET | |
|---|---|
| Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Button | - |
| Video Output | - |
| On-board Storage | - |
| Built-in Microphone | Yes |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| GENERAL | |
|---|---|
| Package Contents | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
| Operating Temperature | -10–55 °C |
| Dimensions( H X W X D ) | 200.3 × 200.3 × 43 mm |
| External Power Supply | 53.5V DC/1.31A |
| Power Consumption | 4.82 W (without disk) |
| VIDEO/IMAGE | |
|---|---|
| Video Input | 4-Channel IP Video Input, up to 8MP Resolution |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| DECODING | |
|---|---|
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4 Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP |

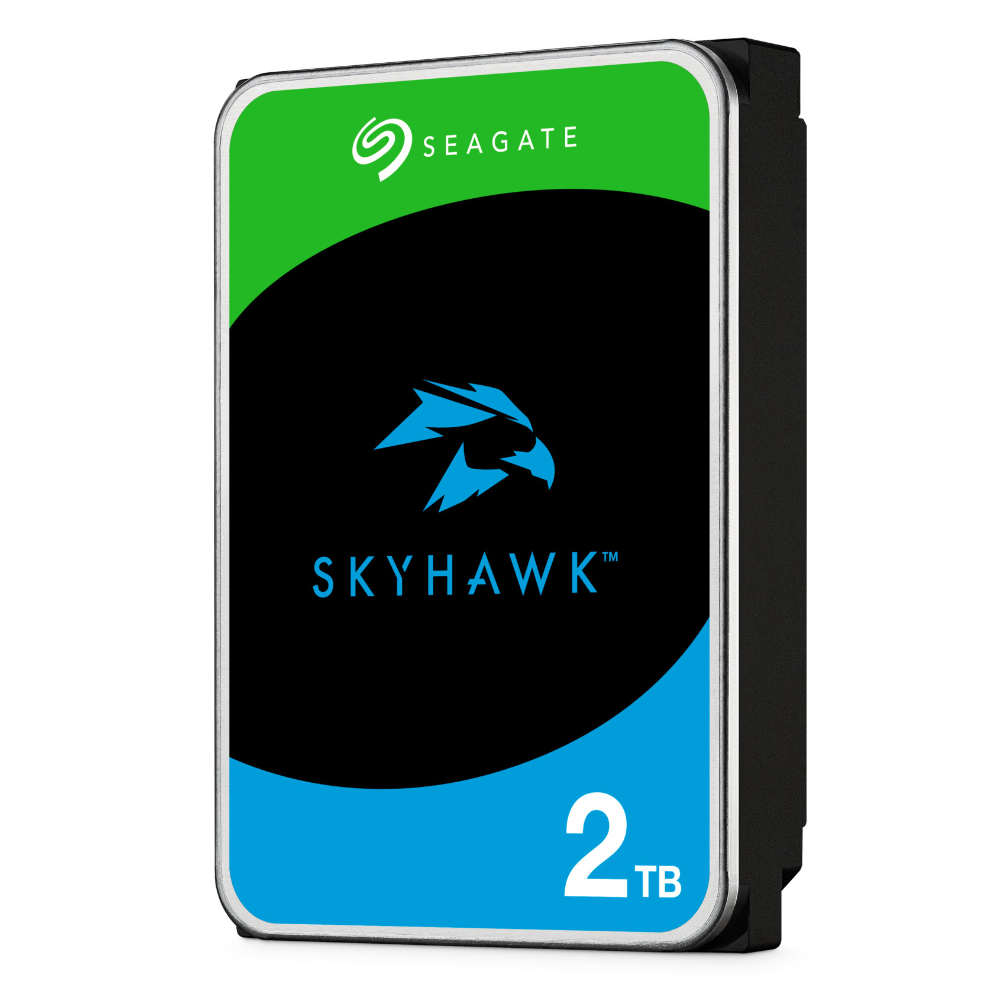

| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB |

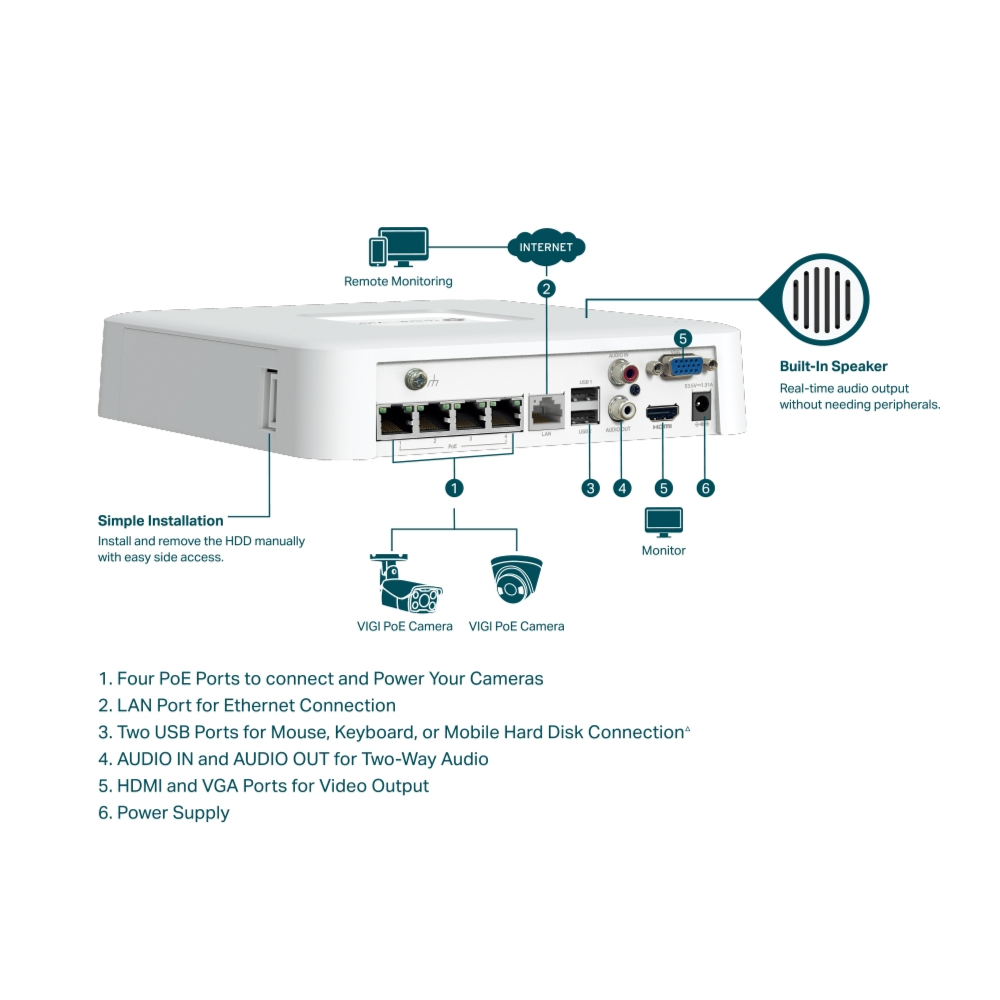

| INTERFACES | |
|---|---|
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
