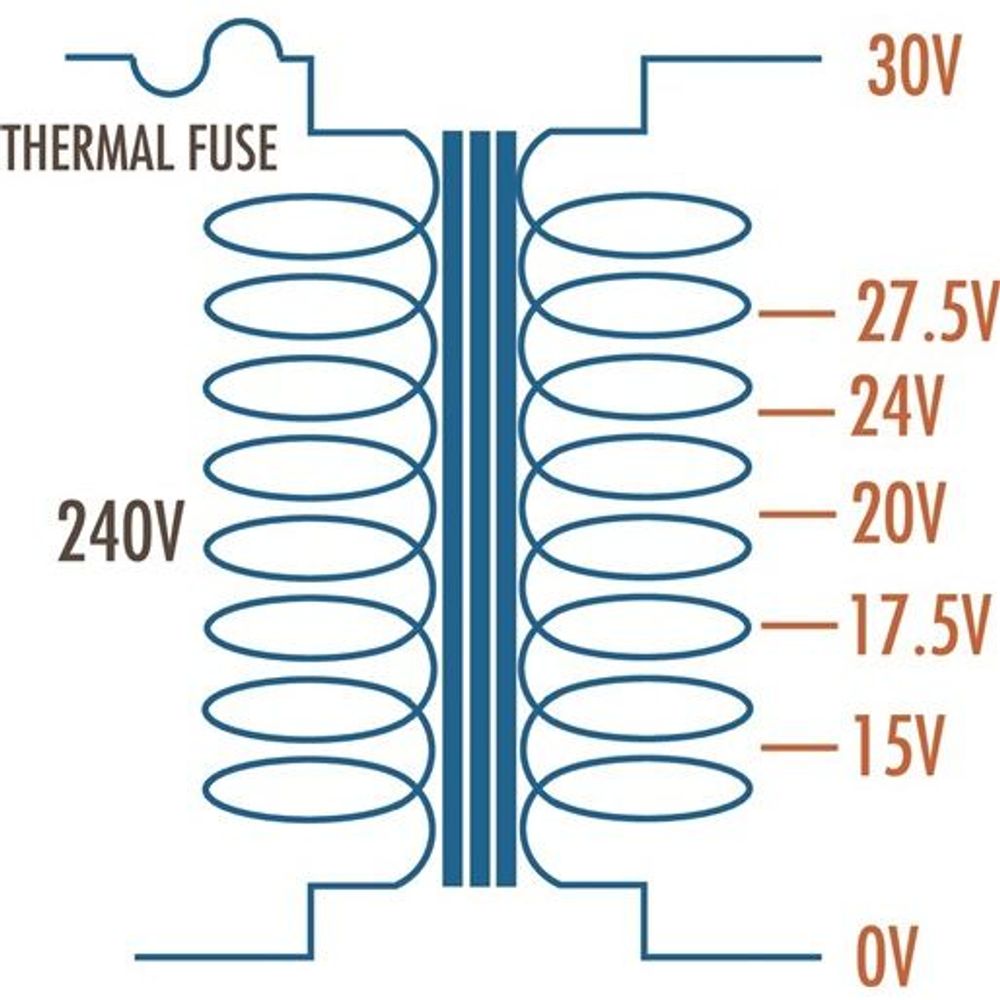

MM2008 240V Mains PowerTraditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs. • Primary Connection: 200mm Fly Leads
Specifications
Specifications
| AC current rating : 1A |
| AC Voltage rating : 15V, 17.5V, 20V, 30V, 27.5V |
| Weight : 924g |
| Mains Voltage Range : 240V |
| Rated for AU Mains : true |
| Max Input Power : 30VA |
| Packaged Volume : 0.47l |
| Packaged Weight : 0.9kg |
| Packaged Length : 10.3cm |
| Packaged Width : 6.7cm |
| Packaged Height : 6.8cm |
| Type of Transformer : Laminated Core |
| Case Type : 6672 |
| Primary Winding Connection : Flyleads |
| Secondary Winding Connection : Solder Tags |
| Secondary Winding Configuration : Multi-tapped |
| Temperature Rise Above Ambient at Rated Power : 60°C |
| Regulation : 11% |
| Core Material : Laminated Iron |
| Magnetising Current : 40mA |
| Thermal Fuse : true |
| Mount Spacing (A) : 85mm |
| Core Winding Depth (D) : 62mm |
| Case Length (L) : 69mm |
| Case Width (W) : 35mm |
| Case Height (H) : 59mm |
| Type of converter or transformer : laminated/toroidal transformer |
| Availability : Stocked item |
