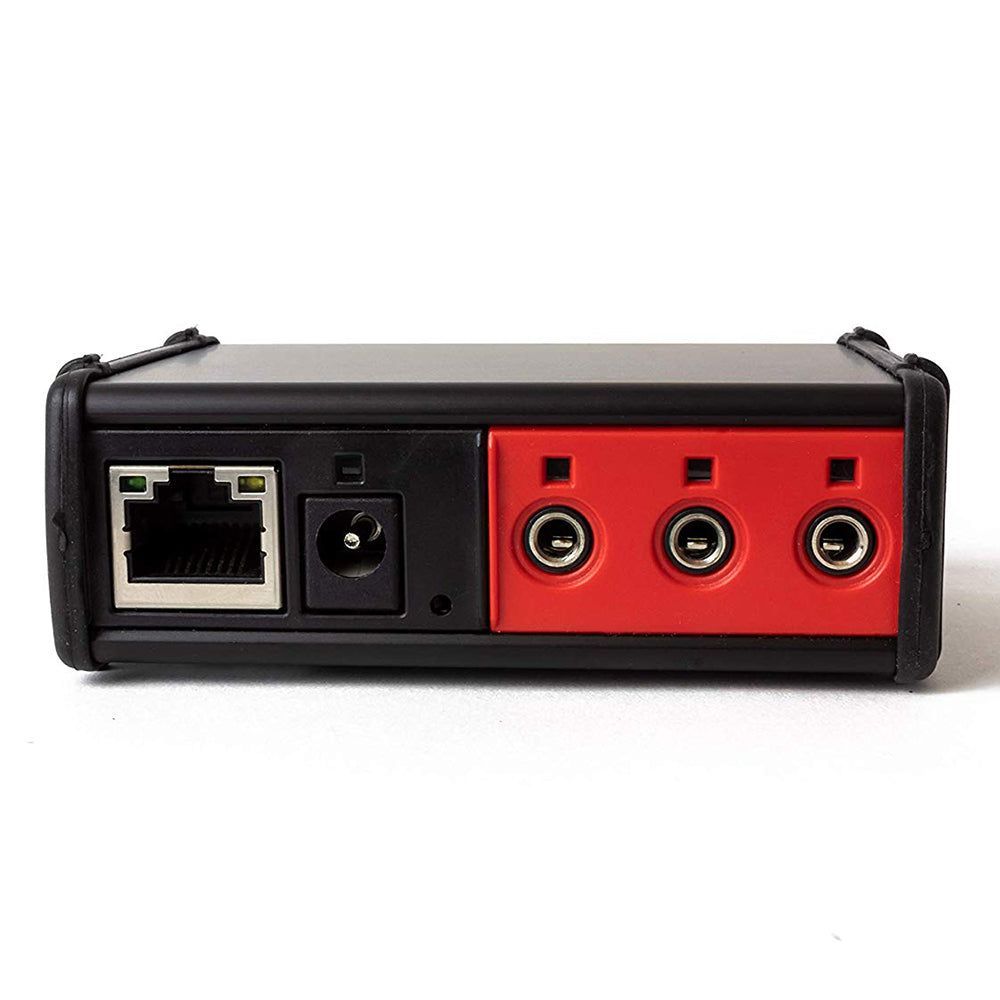

IP2IR-P iTach TCP/IP to IR With POE ( IP2IR-P ) – Global Cache

Use IP2IR-P to Seamlessly Connect, monitor, and control infrared devices over a network and the Internet. The iTach TCP/IP (Ethernet) devices provide a new level of automation and control flexibility, enabling device networking in homes, businesses, or schools. The product is based on open systems and standards for easy integration and compatibility with PC based control software, iPhone/iPod/iPad control apps, and high-end control systems.

Power Input

-5 to 16V DC@300mA (wall power adapter included) –International plugs available -USB power cable draws power from USB port (included) -Power over Ethernet enabled

Setup

Integrated web server for easy configuration Configure through TCP/IP set up commands

iHelp Setup Utility

Downloadable iHelp software simplifies network discovery and setup

IR Learning Utility

Downloadable iLearn software allows for the capture and playback of IR commands for control uses

Network Connection

RJ45 connector 100/10 Mbits Ethernet protocol Adheres to TCP, DHCP and HTTP standards

LED Indicators

Power and all connectors to indicate activity

IR and Sensor Interface

Connector: 3.5mm stereo jack 3 Independent selectable IR outputs or sensor inputs 3 IR emitters included 1 IR blaster included (supported on 3rd IR port)

Device Packaging

Aluminum extrusion case, rubber end caps and plastic face plates Dimensions (LxWxH): 3.25? x 2.25? x 1.25? Weight: 3.25 oz. (6 oz. with power supply)

Certifications

FCC (Part 15, Class B), C-tick, CE RoHs compliant

Shipping Box Dimensions

(LxWxH) 9.0? x 3.5? x 2.0? Weight: 1 lb.

Warranty

Two year limited warranty Support available via phone, email, and comprehensive support portal
